14-16 weeks
908-082-022

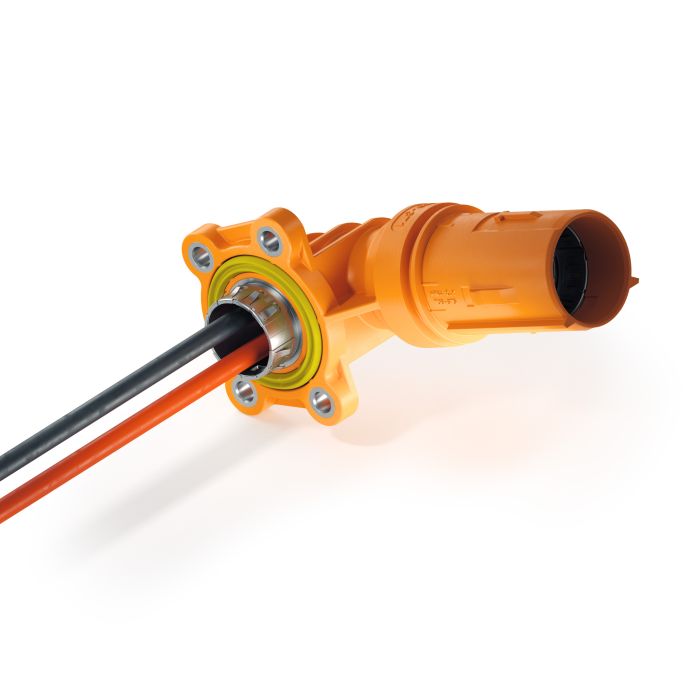

HPS40-2 PLUS M 90° cod.B 2,5mm² L500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€33.07
-
25€22.05
-
100€11.02
-
1200€9.19
-
6000€7.35
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 90 |
| Contact Carrier Coding | B |
| Connection Type | SCC Wire connection |
| EMC | see product specification |
| Connection Cross Section | 2.5 mm² |
| Connection Length | 500 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | PLUS |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | Without |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | Leoni |
