14-16 weeks
908-249-254

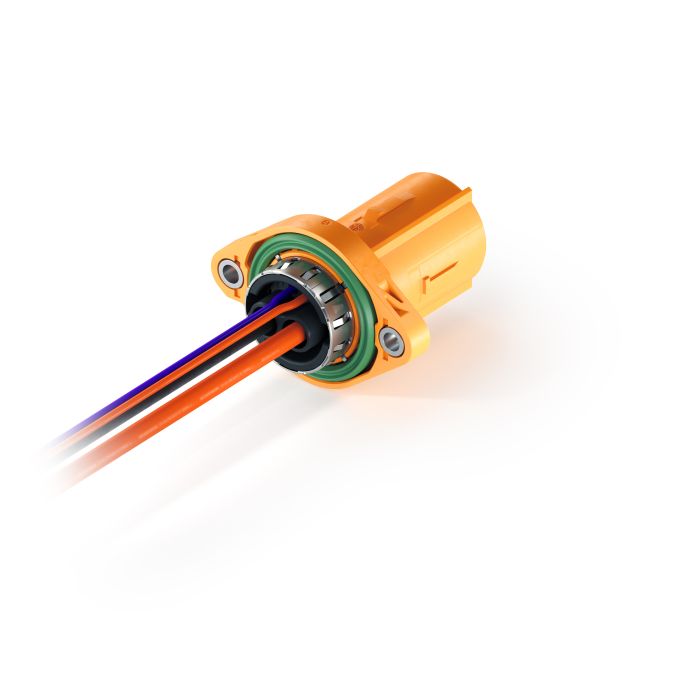

HPS40-2 2+2 MN 180° cod.D 2,5mm² L1500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€26.88
-
25€18.24
-
100€9.60
-
1200€8.16
-
6000€6.72
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | D |
| Connection Type | SCC Wire connection |
| EMC | see product specification |
| Connection Cross Section | 2.5 mm² |
| Connection Length | 1500 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | Standard |
| HVIL Connection Length | 1500 mm |
| HVIL Connection Lead-Out | Straight cutted |
| HVIL Connection Cross Section | 0,50 mm² |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | Leoni |
