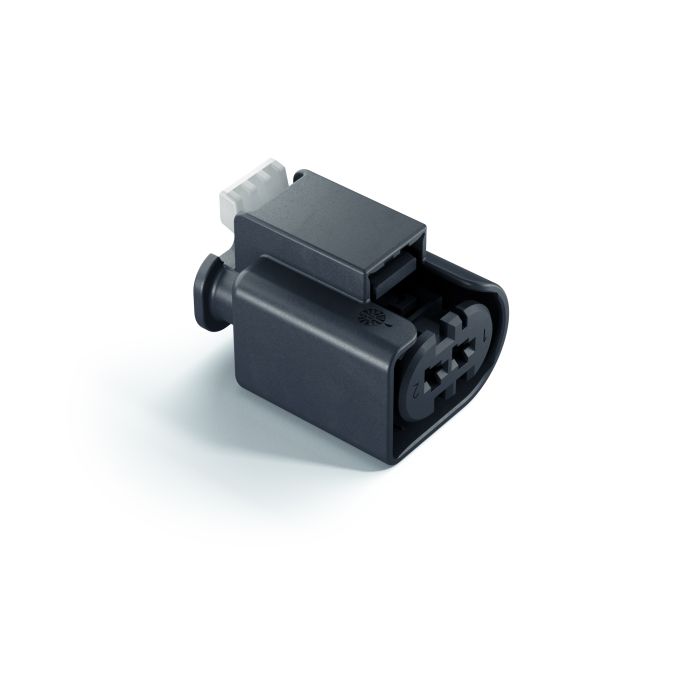

2way 2.8 SealStar FC Connector
Technical Specifications
| Cavity Plug Diameter | Ø 5.18 MM CONNECTOR CAVITY |
|---|---|
| Coding | C |
| Contact Carrier Color | blue |
| Connector Type | Housing for female terminals |
| Connector Position Assurance | with CPA |
| Additional Features | CAVITY 2 CLOSED |
| Contact Carrier Material | PA66 GF25 |
| IP-Code | IPX9K |
| Max. Mating/Unmating Force | ≤ 80 N |
| Number of Terminal Rows | 1 row |
| Number of Pins | 2way |
| Center Line of Terminals | 5.0 mm² |
| Sealed Application | sealed |
| Compatible Terminal System | Kostal SLK 2.8: DOC00043218 |
| Terminal Blade Size | 2.8 mm |
| Type of Compatible Terminal | Locking Lance (LL) |
| Terminal Position Assurance | with TPA |
| Voltage Class | ≤ 60 V |
| Wire Size Range | max. 2.5 mm² |
FAQ Connectors
How can I attach a Hirschmann Automotive EasyConn or SealStar connector to a vehicle chassis?
Hirschmann Automotive´s LV connectors offer clip elements to secure them to the chassis. While Hirschmann Automotive does not manufacture these clips, compatible options are widely available on the market from other suppliers.
How many plug cycles can a Hirschmann Automotive LV connector withstand?
The durability of plug cycles for LV connectors aligns with LV214 PG11 guidelines. The connector housing typically withstands cycles reliably; however, the terminal's surface is the main factor affecting longevity. The surface of the terminal is specified as follows:
SN 20 cycles
Ag 50 cycles
Au 100 cycles
Where can I find the appropriate Single Wire Seal (SWS) for a SealStar connector?
The Single Wire Seal (SWS) details are provided in the corresponding terminal drawing for the SealStar connector.
Where can I find the matching contact for my connector?
Hirschmann Automotive connectors use contacts from standard contact systems, which are readily available on the market. Please refer to the specific connector description for compatibility and contact options accordingly.
What is the difference of an interface number and a product number?
The product number is used to order a connector, while the interface number provides essential design specifications for the connector's interface, whether male or female. This information is crucial for ensuring compatibility and correct functionality.
Do I need a CPA (Connector Position Assurance) feature on my LV SealStar connector?
Whether a CPA is needed for a SealStar connector depends on the specific application and requirements. This decision is up to the customer based on their use case.
Which temperature profile was applied for products validated in accordance with the LV214?
Those products has been tested with the temperature collective from LV124.
Does Hirschmann Automotive recommend Protective Caps for parts tested with IP-Code: IPx9K and USCAR2: S3?
Hirschmann Automotive recommends using Protective Caps for all parts tested with IP-Code: IPx9K and USCAR2: S3 to ensure optimal performance and protection.
