14-16 weeks
809-855-504

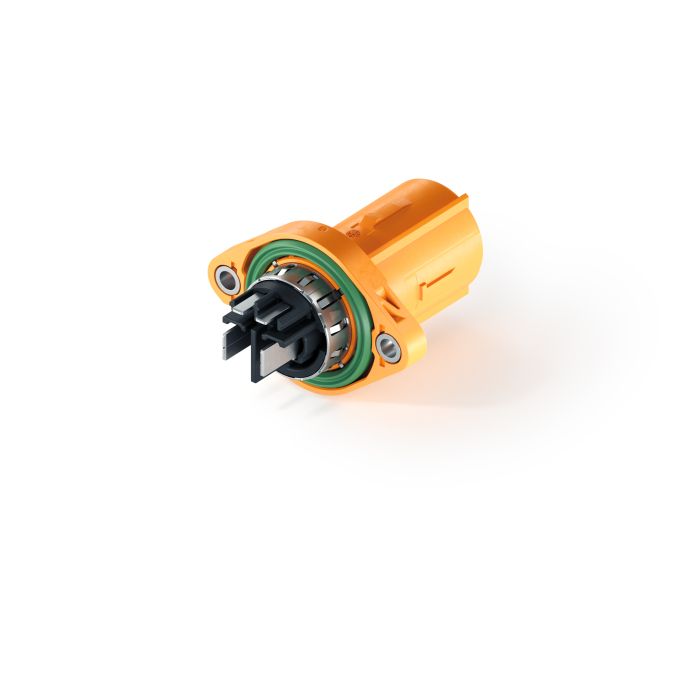

HPS40-2 2+2 M 180° cod.D blade
Scale Prices & Delivery Times
-
QuantityUnit Price
-
175€8.42
-
2100€7.09
-
10500€5.76
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | D |
| Connection Type | Blade connection |
| EMC | see product specification |
| Connection Cross Section | Blade terminal |
| Connection Length | Blade terminal |
| Connection Lead-Out | Blade terminal |
| Interface Type | Standard |
| HVIL Connection Length | Blade terminal |
| HVIL Connection Lead-Out | Blade terminal |
| HVIL Connection Cross Section | Blade terminal |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | No Wire |
