14-16 weeks
809-855-511

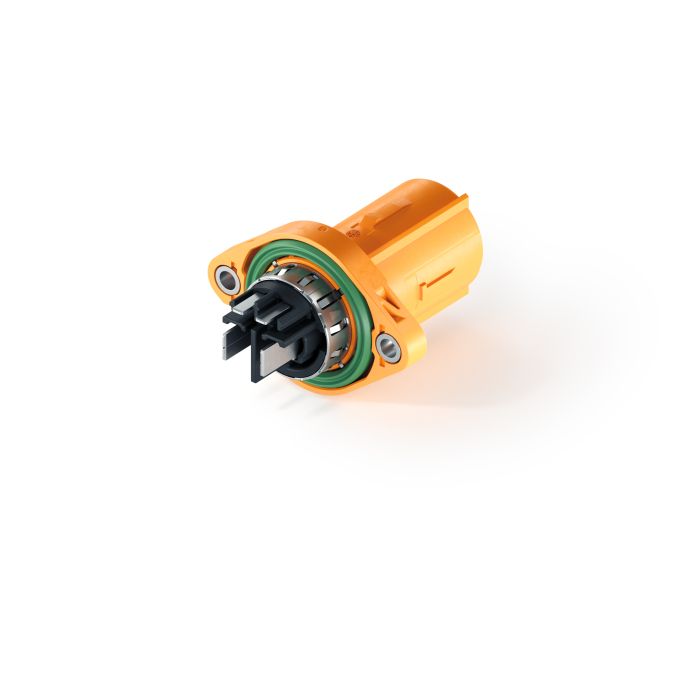

HPS40-2 2+2 M 180° cod.A blade w/o HVIL
Scale Prices & Delivery Times
-
QuantityUnit Price
-
175€7.79
-
2100€6.56
-
10500€5.33
Delivery Times
Technical Specifications
| Ambient Condition | -40° C to +140° C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | A |
| Connection Type | blade connection |
| EMC | see product specification |
| HV Connection Cross Section | blade terminal |
| High Voltage Connection Length | blade terminal |
| HV Connection Lead-Out | blade terminal |
| Interface Type | standard |
| HVIL Connection Length | without |
| HVIL Connection Lead-Out | without |
| HVIL Connection Cross Section | without |
| Touch Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | see derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | without |
| Operating Condition | U = 1,000 VDC |
| Plug Type | EMEA |
| Product Line | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | M housing |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | No Wire |
