810-651-523

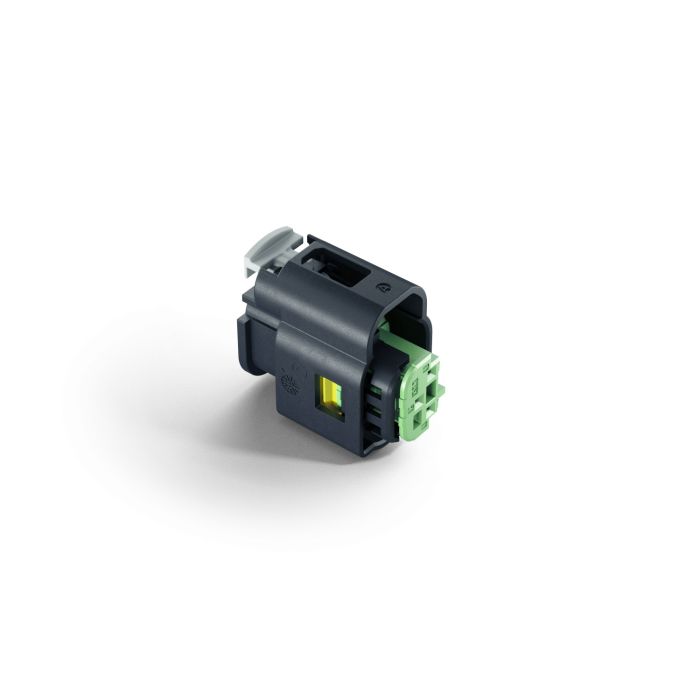

3way 0.63 SealStar FC Connector
Scale Prices & Delivery Times
-
QuantityUnit Price
-
50€4.55
-
100€4.42
-
250€3.84
-
500€3.55
-
750€2.37
Delivery Times
Technical Specifications
Cavity Plug Diameter | Ø 3.45 MM CONNECTOR CAVITY |
---|---|
Coding | C |
Contact Carrier Color | blue |
Connector Type | Housing for female terminals |
Connector Position Assurance | with CPA |
Contact Carrier Material | PBT GF20 |
IP-Code | IPX8, IPX9K |
LV214 | TK3/SG3 |
Max. Mating/Unmating Force | n/a |
Number of Terminal Rows | 2 rows |
Number of Pins | 3way |
Center Line of Terminals | 2.54 x 3.1 mm² |
Sealed Application | sealed |
Compatible Terminal System | TE MQS 0.63: C-929454 |
Terminal Blade Size | 0. 63 mm |
Type of Compatible Terminal | Locking Lance (LL) |
Terminal Position Assurance | with TPA |
USCAR2 | S2 V S3 |
Voltage Class | ≤ 60 V |
Wire Size Range | max. 0.75 mm² |
