812-400-512

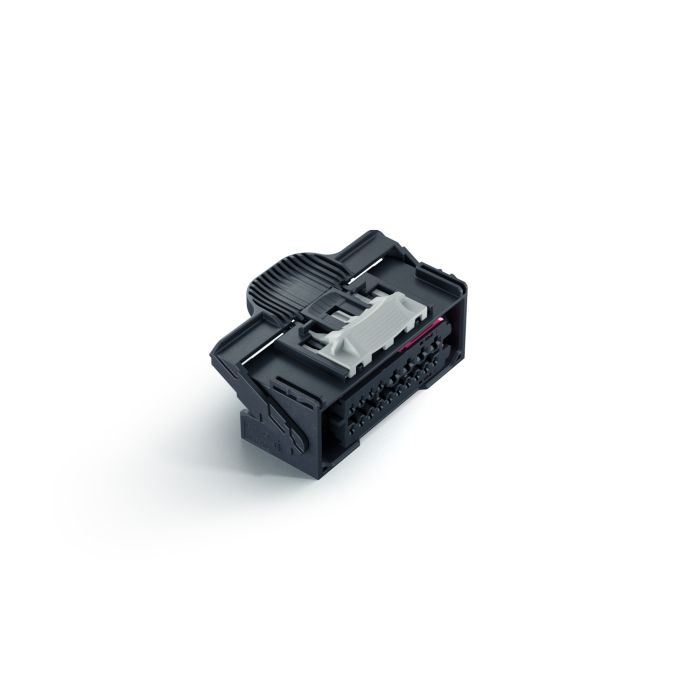

14+4way 1.2+2.8 SealStar FB Connector

€532.50

Scale Prices & Delivery Times

Quantity

Unit Price
50
€10.65
100
€10.00
250
€9.60
500
€8.90
750
€8.30

Delivery Times

Skip to the beginning of the images gallery

Free Sample Order with 10 pieces Here you can order your free samples. Each sample order includes 10 pieces. A free sample order can be carried out once per article.

Technical Specifications

More Information
Cavity Plug Diameter	SWS IS ON THE TERMINAL DRAWING, Ø 3.55 MM CONNECTOR CAVITY, Ø 5.18 MM CONNECTOR CAVITY
Coding	B
Contact Carrier Color	nature
Connector Type	Housing for female terminals
Connector Position Assurance	with CPA
Contact Carrier Material	PA6 GF30
IP-Code	IPX8, IPX9K
LV214	TK4/SG3
Mating Interface	808-307-…
Max. Mating/Unmating Force	≤ 50 N
Number of Terminal Rows	2 rows
Number of Pins	14+4way
Center Line of Terminals	4.0, 6.0 mm²
Sealed Application	sealed
Compatible Terminal System	Kostal MLK 1.2-Sm: DOC00072546, TE MCON 1.2 LL: C-1452674, TE MCP 2.8: C-1355036
Terminal Blade Size	1.2, 2.8 mm
Type of Compatible Terminal	Locking Lance (LL)
Terminal Position Assurance	with TPA
USCAR2	S2 V S3
Voltage Class	≤ 60 V
