14-16 weeks
906-944-543

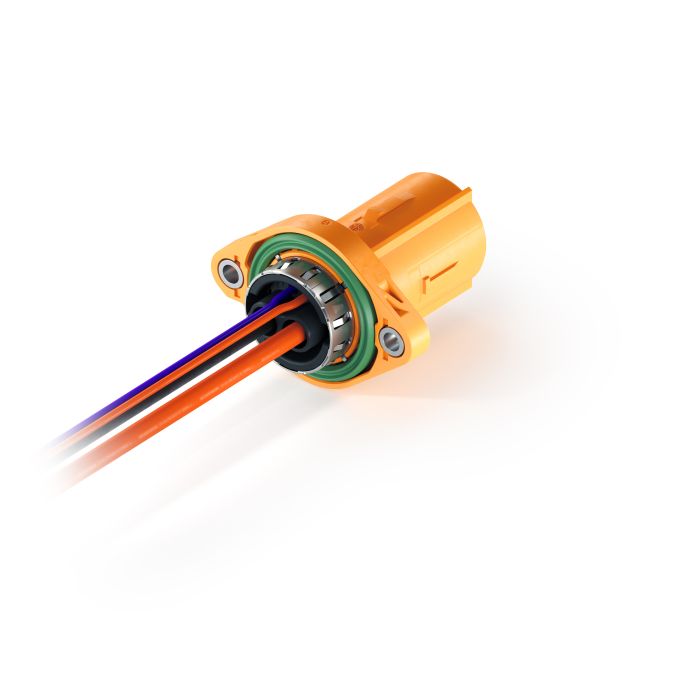

HPS40-2 2+2 M 180° cod.C 4mm² L1500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€41.02
-
25€27.84
-
100€14.66
-
1200€12.47
-
6000€10.27
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | C |
| Connection Type | SCC wire connection |
| EMC | see product specification |
| HV Connection Cross Section | 4.0 mm² |
| High Voltage Connection Length | 1,500 mm |
| HV Connection Lead-Out | straight cut |
| Interface Type | standard |
| HVIL Connection Length | 1,500 mm |
| HVIL Connection Lead-Out | Straight cutted |
| HVIL Connection Cross Section | 0.50 mm² |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | 2way |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Type of Product | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | M housing |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | Leoni |
