14-16 weeks
906-992-502

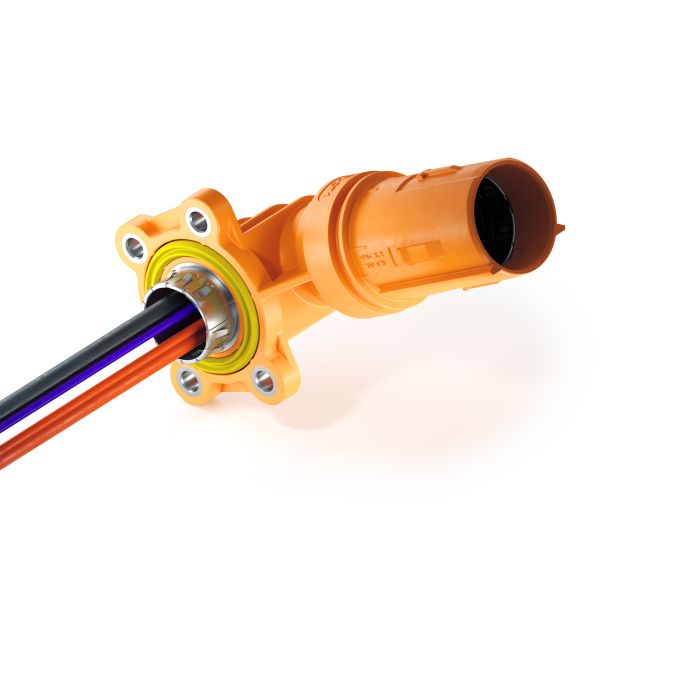

HPS40-2 2+2 M 90° cod.B 6mm² L1500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€57.21
-
25€38.72
-
100€20.22
-
1200€17.14
-
6000€14.06
Delivery Times
Technical Specifications
Ambient Condition | -40°C to +140°C |
---|---|
Angle Variant | 90 |
Contact Carrier Coding | B |
Connection Type | SCC Wire connection |
EMC | see product specification |
Connection Cross Section | 6.0 mm² |
Connection Length | 1500 mm |
Connection Lead-Out | Straight cutted |
Interface Type | Standard |
HVIL Connection Length | 1500 mm |
HVIL Connection Lead-Out | Straight cutted |
HVIL Connection Cross Section | 0,35 mm² |
IP-Degree of Protection | IPXXD (assembled) |
Maximum Current Load | See derating product spec. |
Number of Connections | 2way |
Number of HVIL Connections | 2 pol. |
Operating Condition | U = 1000 VDC |
Plug Type | EMEA |
Product Type | HPS40-2 2+2 |
Shield Contact Resistance | see product spec. |
Shielded Area | 360° circumferential |
Socket Type | Male |
Vibration Strength Class | see product spec. |
Wire Manufacturer | Leoni |
