14-16 weeks
907-015-212

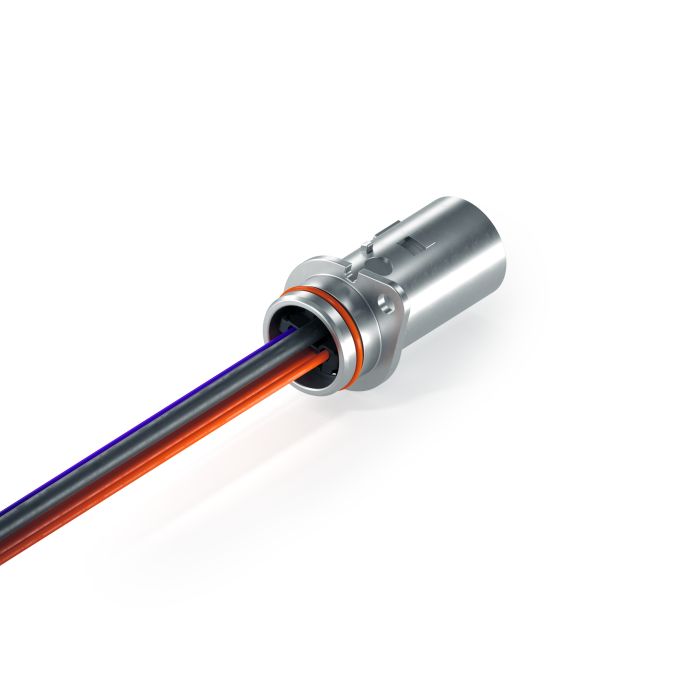

HPS40-1 2+2 M 180° cod.B 4mm² L1500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€46.04
-
25€31.14
-
100€16.23
-
1200€13.75
-
6000€11.27
Delivery Times
Technical Specifications
| Ambient Condition | -40° C to +140° C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | B |
| Connection Type | SCC wire connection |
| EMC | see product specification |
| HV Connection Cross Section | 4.0 mm² |
| High Voltage Connection Length | 1,500 mm |
| HV Connection Lead-Out | straight cut |
| Interface Type | standard |
| HVIL Connection Length | 1,500 mm |
| HVIL Connection Lead-Out | straight cut |
| HVIL Connection Cross Section | 0.35 mm² |
| Touch Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | see derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | 2way |
| Operating Condition | U = 1,000 VDC |
| Plug Type | EMEA |
| Product Line | HPS40-1 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | M housing |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | Leoni |
