907-309-F26

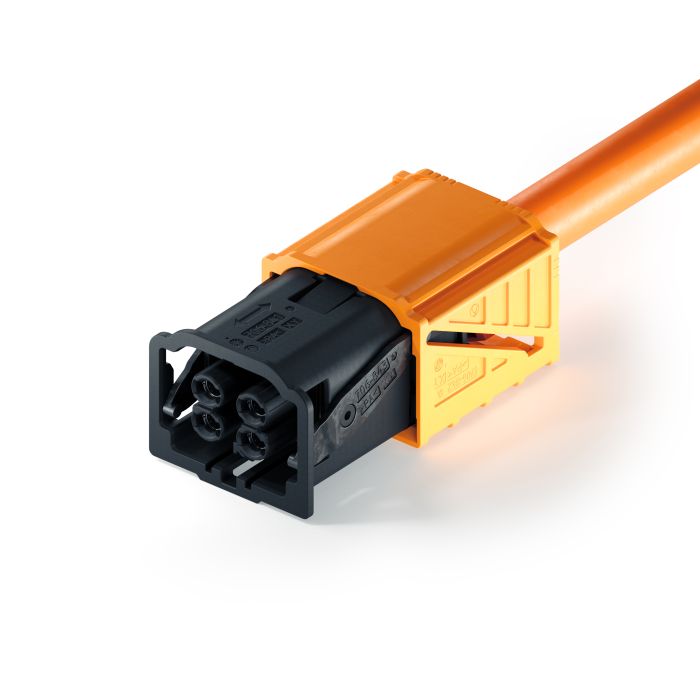

HPS40 4+2 F cod.B 3x6mm² MCC L5000 CP
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€110.78
-
25€98.47
-
100€86.16
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | B |
| Connection Type | MCC Wire connection |
| EMC | see product specification |
| Connection Cross Section | 6.0 mm² |
| Connection Length | 5000 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | Standard |
| HVIL Connection Length | Blade terminal |
| HVIL Connection Lead-Out | Blade terminal |
| HVIL Connection Cross Section | Blade terminal |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 3way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Female |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | Coroflex |
