14-16 weeks
907-310-031

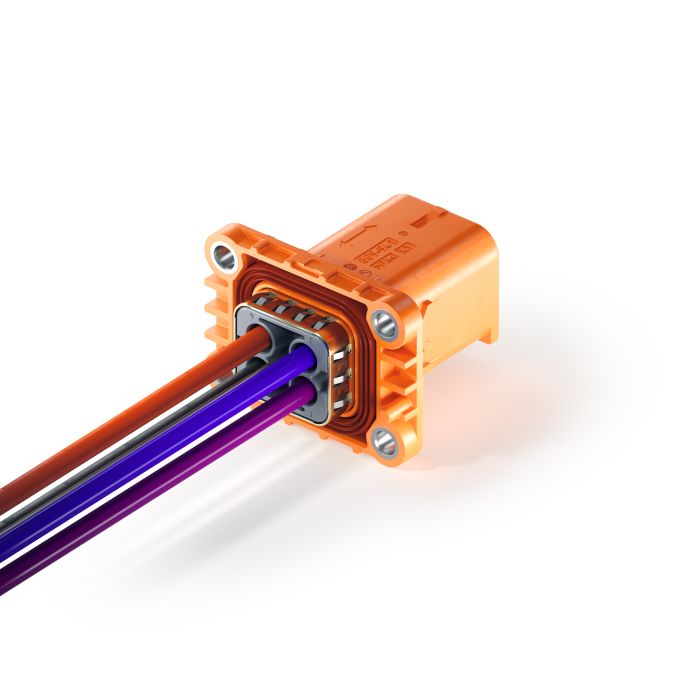

HPS40 4+2 M 180° cod.A 4x4mm² L500
Scale Prices & Delivery Times
-
QuantityUnit Price
-
60€12.13
-
720€10.11
-
3600€8.09
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | A |
| Connection Type | SCC Wire connection |
| EMC | see product specification |
| Connection Cross Section | 4.0 mm² |
| Connection Length | 500 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | Standard |
| HVIL Connection Length | 500 mm |
| HVIL Connection Lead-Out | Straight cutted |
| HVIL Connection Cross Section | 0,35 mm² |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 4way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | Leoni |
