14-16 weeks
908-149-G83

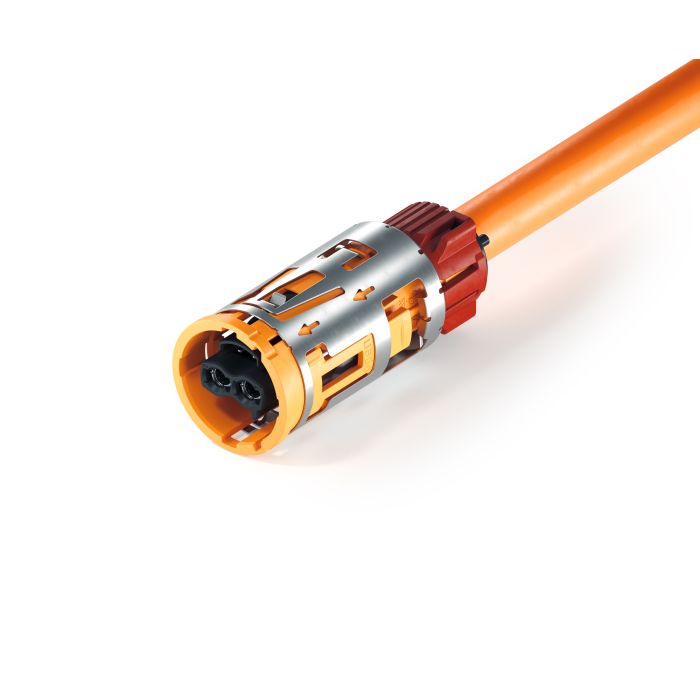

HPS40-2 PLUS F cod.C 6mm² MCC L5000 CP
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€108.56
-
25€95.96
-
100€83.35
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | C |
| Connection Type | MCC wire connection |
| EMC | see product specification |
| HV Connection Cross Section | 6.0 mm² |
| High Voltage Connection Length | 5,000 mm |
| HV Connection Lead-Out | straight cut |
| Interface Type | PLUS |
| HVIL Connection Length | without |
| HVIL Connection Lead-Out | Without |
| HVIL Connection Cross Section | without |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | without |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Type of Product | HPS40-2 PLUS |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | F housing |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | Coroplast |
