14-16 weeks
908-310-D83

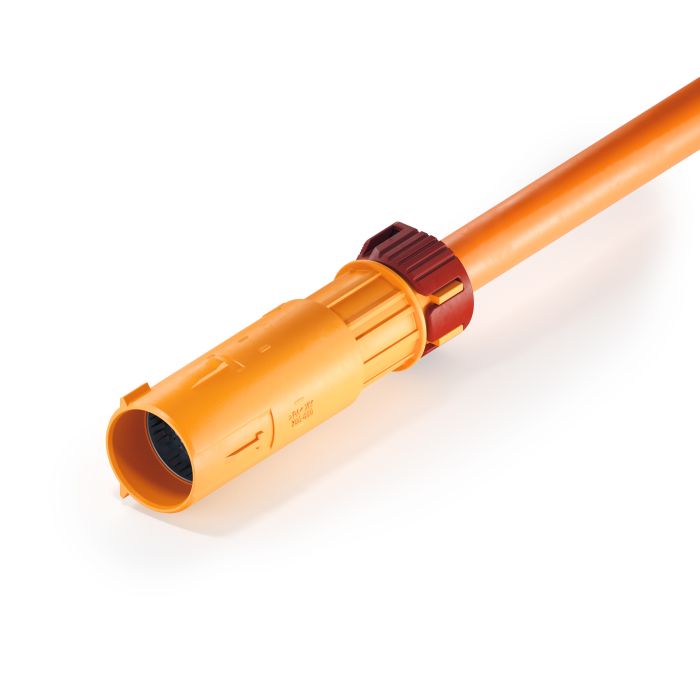

HPS In-Line P M cod.C 6mm² MCC L5000 CP
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€113.50
-
25€100.19
-
100€86.88
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | C |
| Connection Type | MCC Wire connection |
| EMC | see product specification |
| Connection Cross Section | 6.0 mm² |
| Connection Length | 5000 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | PLUS |
| HVIL Connection Length | Without |
| HVIL Connection Lead-Out | Without |
| HVIL Connection Cross Section | Without |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | Without |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS In-Line connector |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | Coroplast |
