908-321-A35

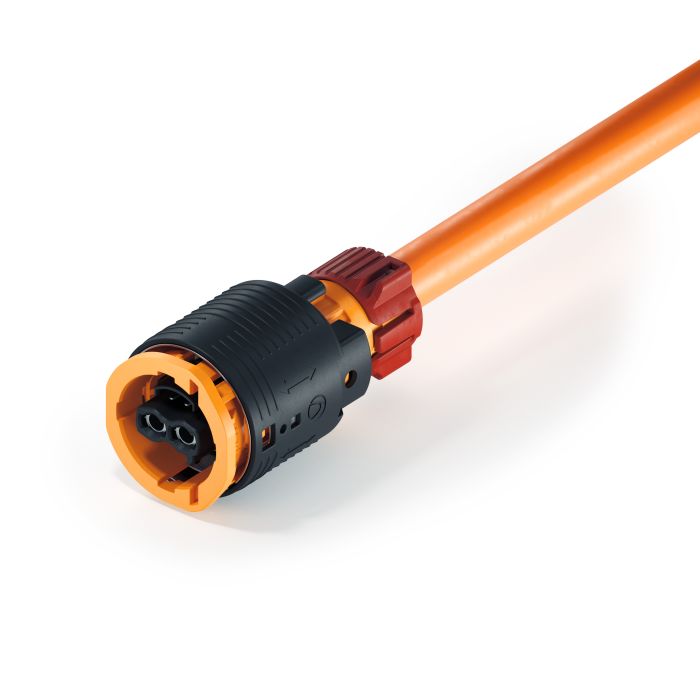

HPS40-2 Female NAFTA 6mm2 MCC
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | Z |
| Connection Type | MCC Wire connection |
| EMC | >70 dB (10 KHz to 5 MHz) |
| Connection Cross Section | 6.0 mm² |
| Connection Length | 5000 mm |
| Connection Lead-Out | Straight cutted |
| Interface Type | Standard |
| HVIL Connection Length | Blade terminal |
| HVIL Connection Lead-Out | Blade terminal |
| HVIL Connection Cross Section | Blade terminal |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | 64 A / 80°C (6,0 mm²) |
| Number of Connections | 2way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | NAFTA |
| Product Type | HPS40-2 |
| Shield Contact Resistance | 2mΩ |
| Shielded Area | 360° circumferential |
| Socket Type | Female |
| Vibration Strength Class | According to LV 215 |
| Wire Manufacturer | Leoni |
