908-630-001

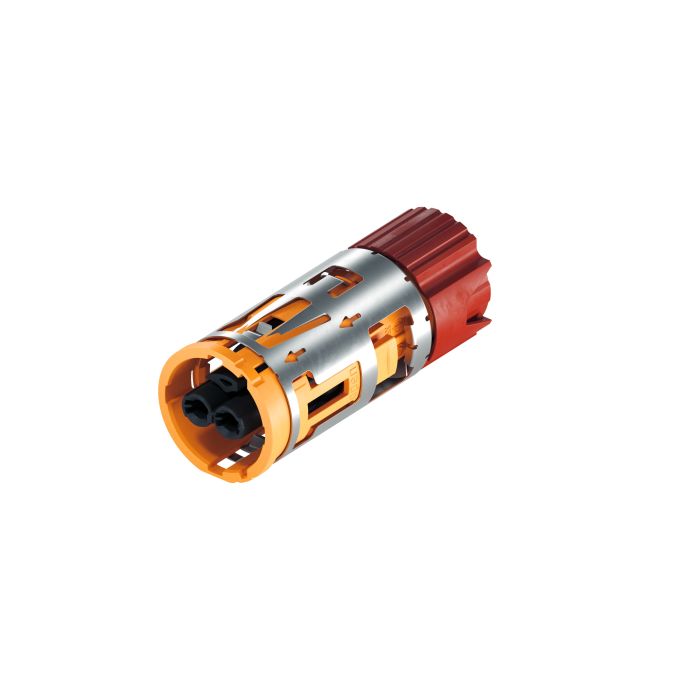

HPS40-2 PLUS FEMALE COD.A BLIND PLUG EMV
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | A |
| EMC | see product specification |
| Interface Type | PLUS |
| HVIL Connection Length | Without |
| HVIL Connection Lead-Out | Without |
| HVIL Connection Cross Section | Without |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40-2 PLUS |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Female |
| Vibration Strength Class | see product spec. |
| Wire Manufacturer | No Wire |
