14-16 weeks
908-630-007

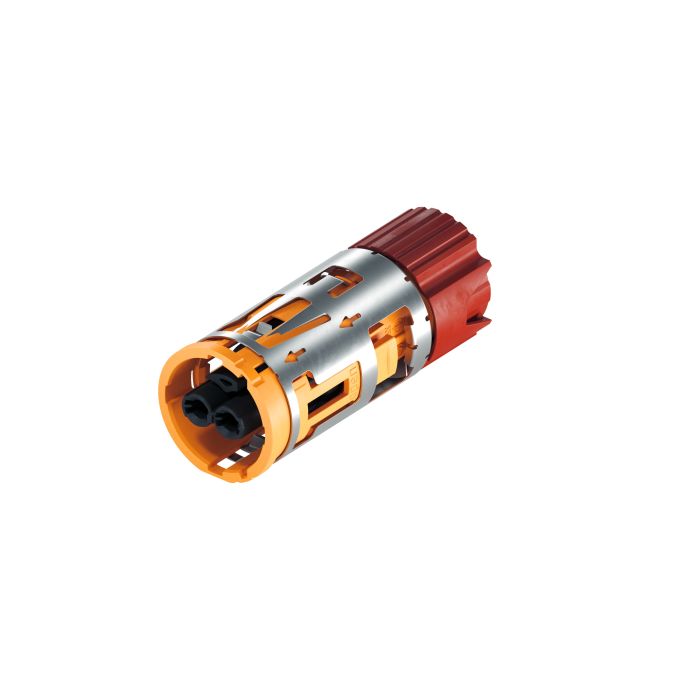

HPS40-2 PLUS FEMALE COD.Z BLIND PLUG EMV
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€23.83
-
10€16.11
-
100€8.38
Delivery Times
Technical Specifications
| Ambient Condition | -40° C to +140° C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | Z |
| EMC | see product specification |
| Interface Type | PLUS |
| HVIL Connection Length | without |
| HVIL Connection Lead-Out | without |
| HVIL Connection Cross Section | without |
| Touch Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | see derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | 2way |
| Operating Condition | U = 1,000 VDC |
| Plug Type | EMEA |
| Product Line | HPS40-2 PLUS |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | F housing |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | No Wire |
