14-16 weeks
909-002-A01

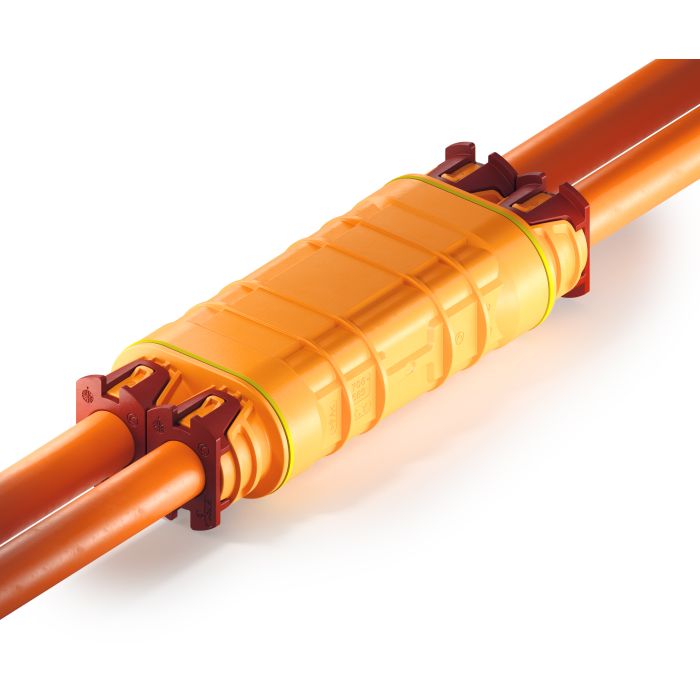

HPS H-Distributor P 6mm² MCC L1000 CP
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€202.38
-
25€182.14
-
100€161.91
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Connection Type | MCC wire connection |
| EMC | see product specification |
| HV Connection Cross Section | 6.0 mm² |
| High Voltage Connection Length | 1,000 mm |
| HV Connection Lead-Out | straight cut |
| Interface Type | PLUS |
| HVIL Connection Length | without |
| HVIL Connection Lead-Out | Without |
| HVIL Connection Cross Section | without |
| IP-Degree of Protection | IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of High Voltage Pins | 2way |
| Number of Interlock Pins | without |
| Operating Condition | U = 1000 VDC |
| Type of Product | HPS Distributor |
| Shield Contact Resistance | see product spec. |
| Shielding | shielded |
| Plug Socket Type | H-Distributor |
| Vibration Strength Class | see product spec. |
| HV Wire Manufacturer | Coroplast |
