14-16 weeks
909-039-211

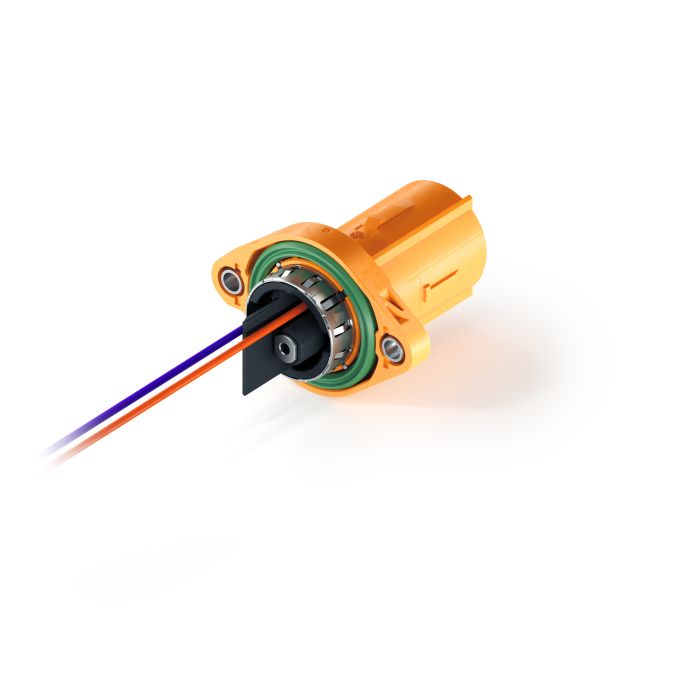

HPS40-2 2+2 M 180° cod.A busbar
Scale Prices & Delivery Times
-
QuantityUnit Price
-
5€26.22
-
25€17.55
-
100€8.88
-
1200€7.43
-
6000€5.99
Delivery Times
Technical Specifications
| Ambient Condition | -40°C to +140°C |
|---|---|
| Angle Variant | 180 |
| Contact Carrier Coding | A |
| Connection Type | Busbar connection |
| EMC | see product specification |
| Connection Cross Section | Busbar terminal |
| Connection Length | Busbar terminal |
| Connection Lead-Out | Busbar terminal |
| Interface Type | Standard |
| HVIL Connection Length | 1500 mm |
| HVIL Connection Lead-Out | Straight cutted |
| HVIL Connection Cross Section | 0,50 mm² |
| IP-Degree of Protection | IPXXB (disassembled), IPXXD (assembled) |
| Maximum Current Load | See derating product spec. |
| Number of Connections | 2way |
| Number of HVIL Connections | 2 pol. |
| Operating Condition | U = 1000 VDC |
| Plug Type | EMEA |
| Product Type | HPS40-2 2+2 |
| Shield Contact Resistance | see product spec. |
| Shielded Area | 360° circumferential |
| Socket Type | Male |
| Vibration Strength Class | see product spec. |
